Gas chromatography systems are workhorses in analytical laboratories, but like any sophisticated instrument, they can develop problems that affect performance and results. Understanding common GC problems and solutions helps you keep your laboratory running smoothly and maintain reliable analytical data.
When your GC starts acting up, quick identification and resolution of issues can save time and money and prevent lost samples. Most problems have straightforward solutions once you know what to look for and how to approach gas chromatography troubleshooting systematically.
This comprehensive guide covers the most frequent GC issues you’ll encounter and provides practical solutions that laboratory technicians can implement.
Whether you’re dealing with baseline problems, peak shape issues, or retention time shifts, we’ll help you get your system back on track.

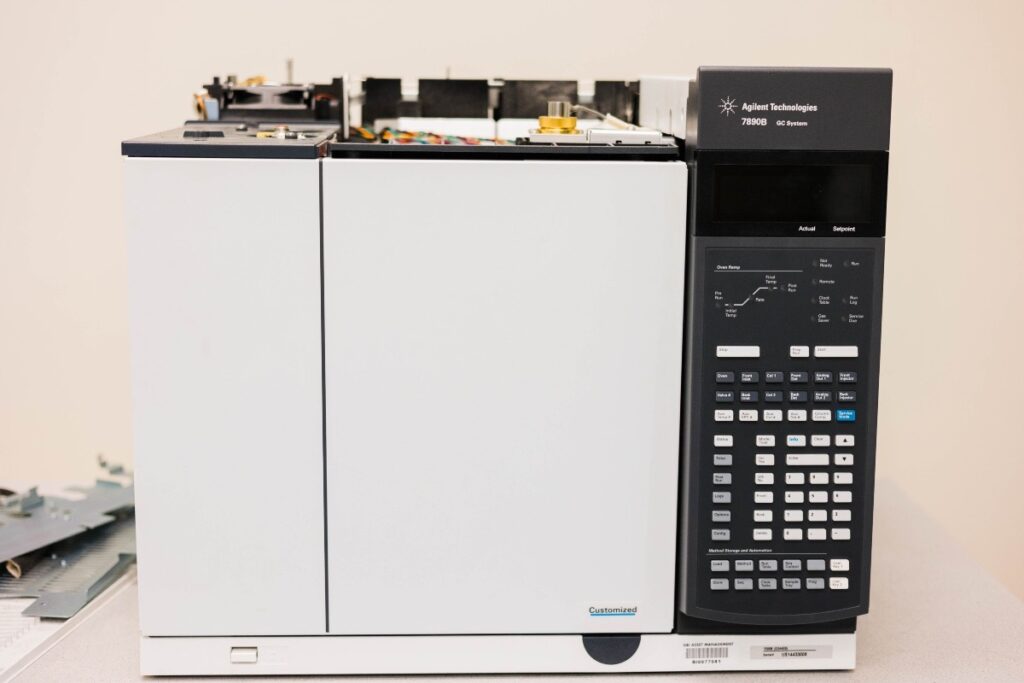

Understanding Your GC System Components

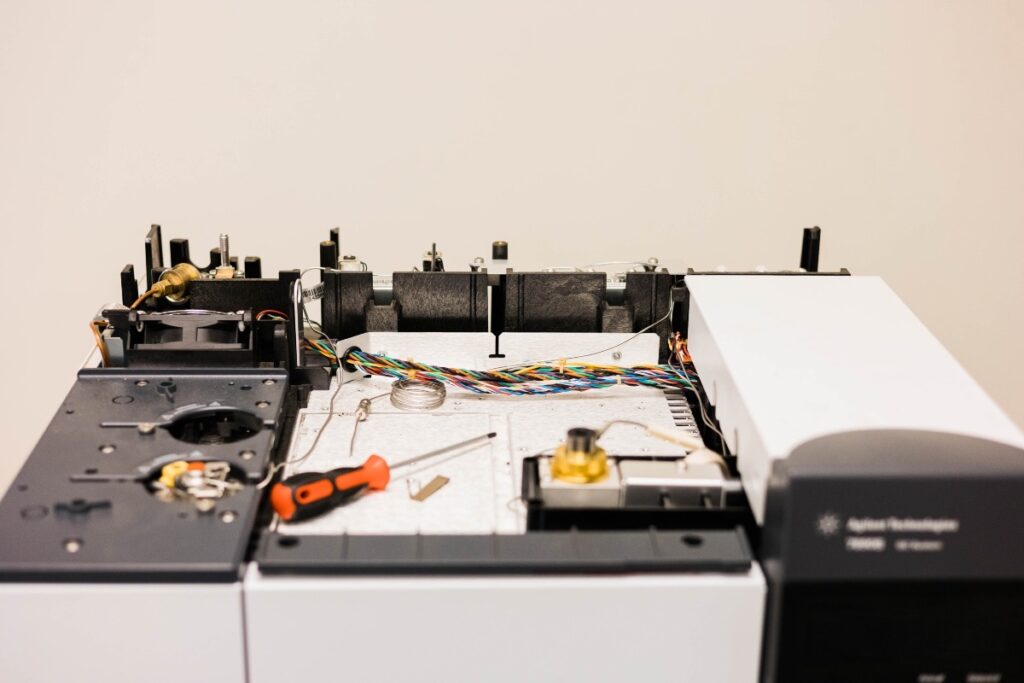

Before tackling specific problems, it’s helpful to understand how different system components can affect your results. Gas chromatography systems consist of several interconnected parts that must work together seamlessly.
The injection system introduces your sample into the carrier gas stream. Problems here often manifest as poor peak shape, carryover, or inconsistent peak areas. The column separates your analytes and is affected by temperature, flow rate, and contamination.
Your detector converts separated compounds into measurable signals. Detector issues typically appear as baseline noise, drift, or sensitivity problems. The data system records and processes signals so that software glitches can create apparent analytical problems.
Baseline Problems and Solutions
Baseline issues are among the most common concerns in GC troubleshooting. A stable baseline is essential for accurate quantitation and reliable results.
Noisy Baseline
Excessive baseline noise makes it difficult to detect small peaks and affects quantitation precision. Electronic interference, contaminated carrier gas, or detector problems are typically the cause of this issue.
Check your carrier gas purity first. Contaminated gas can create noise and damage your column and detector. Replace gas purification traps according to manufacturer recommendations and verify gas lines are leak-free.
Detector contamination often produces noise. Clean your detector according to the manufacturer’s procedures. For flame ionization detectors, this might involve cleaning the jet and collector. Mass spectrometer sources may require thorough cleaning or filament replacement.
Temperature fluctuations in the detector zone can create noise. Ensure your detector temperature is stable and that the instrument isn’t located near heat sources or air conditioning vents.
Baseline Drift
A drifting baseline indicates systematic changes during your analysis. This can result from temperature programming issues, column bleed, or contamination.
Column bleed increases with temperature and time. If drift correlates with your temperature program, the column may be contaminated or degraded. Try baking out the column at maximum temperature with carrier gas flow but no detector connection.
Detector contamination can cause drift patterns. Regular detector maintenance and cleaning help prevent this issue. Some detectors require conditioning periods after cleaning before stable baselines return.
Check for air leaks in the system. Even minor leaks can cause baseline drift as atmospheric gases enter the carrier gas stream. Use a leak detector solution around all fittings and connections.
Peak Shape Problems
Poor peak shape affects both qualitative and quantitative analysis. Understanding the causes helps you quickly identify and fix these common GC problems and solutions.
Tailing Peaks
Peak tailing occurs when the trailing edge of a peak is extended, creating an asymmetrical shape. This problem affects integration accuracy and can mask small adjacent peaks.
Active sites in the injection port or the column are the primary cause of most tailing issues. These sites interact with polar compounds, resulting in slow elution. Deactivating the injection port liner or replacing it often solves the problem.
Column contamination from non-volatile sample components can create active sites. Trimming a small section of the column inlet can remove contaminated stationary phase. If contamination is extensive, column replacement may be necessary.
Incorrect injection technique can cause apparent tailing. Fast injection of large volumes can overload the system. Reduce injection volume or use split injection to minimize overloading effects.
Fronting Peaks
Fronting peaks have extended leading edges and sharp trailing edges. This typically results from column overloading or improper injection conditions.
Sample overloading occurs when too much analyte is injected for the column’s capacity. Reduce injection volume or increase the split ratio to address this issue. For trace analysis requiring large injections, consider a larger-diameter column.
Temperature conditions at injection can cause fronting. If the injection port temperature is too low, sample components may not vaporize completely, leading to poor peak shape. Increase the injection port temperature within safe limits for your analytes.
Split flow problems can create fronting peaks. Verify that split flow rates are appropriate for your injection volume and sample concentration.
Split Peaks
Split or double peaks from single compounds indicate serious system problems that require immediate attention.
Column damage is a common cause of peak splitting. Physical damage to the column packing or the stationary phase creates multiple flow paths. Inspect the column for visible damage and replace it if necessary.
Injection port problems can split peaks. A damaged liner or incorrect liner design may create multiple sample introduction paths. Replace the liner and ensure it’s appropriate for your application.
Temperature variations in the injection zone can cause splitting. Verify that the injection port heating is uniform and that the liner is correctly positioned.
Retention Time Issues
Consistent retention times are crucial for compound identification and method reliability. Changes in retention times indicate system problems that need to be corrected.
Retention Time Shifts
Systematic shifts in retention times affect method performance and can invalidate calibrations. Several factors can cause these shifts.
Flow rate changes are the most common cause of retention time shifts. Verify carrier gas flow rates using a flow meter or electronic flow measurement. Pressure regulation problems or gas supply issues can affect flow rates.
Column conditioning may be inadequate after installation or maintenance. New columns require proper conditioning according to the manufacturer’s specifications. Insufficient conditioning can lead to instability in retention time.
Temperature program variations affect retention times. Calibrate your oven temperature regularly and verify that heating and cooling rates meet specifications. Faulty temperature sensors can cause apparent program variations.
Retention Time Drift
Gradual changes in retention time across multiple injections indicate ongoing system issues that need attention.
Column degradation causes gradual changes in retention time as the stationary phase deteriorates. Monitor column performance regularly and replace columns when retention times drift beyond acceptable limits.
Carrier gas flow drift can result from pressure regulation problems or contamination in flow control systems. Regular maintenance of flow controllers and pressure regulators prevents these issues.
Sample contamination sometimes causes retention time drift. Non-volatile sample components can accumulate in the injection system or column, affecting subsequent analyses. Regular system maintenance and improvements to sample preparation help prevent contamination.
Injection System Problems
The injection system is critical for reproducible results. Problems here affect peak area precision, carryover, and overall method performance.
Poor Injection Precision
Inconsistent peak areas across replicate injections indicate problems with the injection system. Manual injection technique or autosampler issues are typically the cause of this variability.
Autosampler maintenance improves precision significantly. Clean the syringe regularly and replace worn septa. Verify that injection volumes are accurate using gravimetric or other direct measurement methods.
Syringe problems affect manual injections. Use appropriate syringe sizes and ensure needles are sharp and undamaged. Replace syringes regularly to maintain precision.
Sample preparation consistency impacts injection precision. Ensure samples are properly mixed and that volatile components haven’t evaporated during storage.
Carryover Problems
Carryover occurs when components from previous injections appear in subsequent analyses. This contamination can affect quantitation and lead to false-positive results.
Injection port contamination is the most common source of carryover. High-boiling sample components can accumulate in the injection system. Regular liner replacement and injection port cleaning prevent most carryover issues.
Autosampler contamination causes systematic carryover. Clean sample introduction systems thoroughly and use appropriate wash solvents between injections. Some applications require multiple wash cycles for complete decontamination.
Column contamination can create carryover that’s difficult to eliminate. Baking out the column or trimming contaminated sections may help. Severely contaminated columns require replacement.
Detector-Specific Issues
Different detector types have unique troubleshooting requirements. Understanding your detector’s specific needs helps you maintain optimal performance.
Flame Ionization Detector (FID) Problems
FID detectors are robust but require proper gas supplies and regular maintenance for optimal performance.
Flame stability affects baseline and sensitivity. Verify that hydrogen and air flow rates meet specifications. Clean the jet and collector according to the manufacturer’s procedures if the flame is unstable.
Ignition problems can result from contaminated jets or incorrect gas flows. Ensure gas supplies are pure and that flow rates are correct. Replace jets if cleaning doesn’t restore proper ignition.
Sensitivity loss often indicates contamination of the collector or jet. Regular cleaning maintains sensitivity. Very dirty detectors may require disassembly for thorough cleaning.
Mass Spectrometer Problems
GC-MS systems require specialized troubleshooting approaches due to their complexity.
Vacuum problems significantly affect mass spectrometer performance. Monitor vacuum levels and maintain pumping systems in accordance with manufacturer recommendations. Replace pump oil regularly and check for leaks.
Ion source contamination reduces sensitivity and affects mass accuracy. Clean ion sources regularly using appropriate procedures. Some sources require replacement of filaments or other consumable components.
Mass calibration drift affects compound identification. Perform regular mass calibration using appropriate reference compounds. Automated calibration systems help maintain accuracy over time.
System Maintenance Best Practices
Preventive maintenance prevents many common problems and extends equipment life. Following a regular maintenance schedule saves time and reduces unexpected downtime.
Here’s a comprehensive maintenance checklist organized by frequency:
- Daily checks: Verify carrier gas pressure and flow, check baseline stability, inspect autosampler operation
- Weekly maintenance: Replace injection port septa, check detector gases, and clean autosampler syringe
- Monthly tasks: Replace injection port liners, check column performance, calibrate temperature and flow
- Quarterly service: Clean detectors, replace gas purification traps, update calibrations
- Annual maintenance: Replace columns as needed, service pumps and flow controllers, complete system calibration
- As–needed repairs: Address leaks immediately, replace worn components, update software
- Documentation: Log all maintenance activities, track column performance, and record system changes
- Training updates: Keep staff current on procedures, review troubleshooting guides, and practice emergency procedures
- Spare parts inventory: Maintain critical components, monitor expiration dates, and order replacements proactively
- Performance monitoring: Track system performance trends, identify developing problems, and plan preventive actions
Advanced Troubleshooting Techniques
Some problems require more sophisticated diagnostic approaches. These techniques help identify complex issues that don’t respond to basic troubleshooting.
Systematic Problem Isolation
When multiple symptoms appear simultaneously, systematic isolation helps identify root causes. Start by testing individual system components to determine which areas are functioning normally.
Test the injection system by injecting known standards and evaluating peak shape and area precision. Injection problems typically affect all peaks similarly.
Evaluate column performance using standard test mixtures. Column problems often affect different compounds differently based on their chemical properties.
Check detector performance using direct detector tests when possible. Many detectors have built-in diagnostic capabilities that can identify specific problems.
Documentation and Trending
Keeping detailed records helps identify patterns and predict when maintenance will be needed. Track key performance indicators over time to spot developing issues.
Log retention times for standard compounds in each analysis. Gradual changes indicate developing problems before they become severe enough to affect results.
Monitor baseline stability and detector sensitivity regularly. Trending this data helps predict when cleaning or replacement will be necessary.
Document all maintenance activities and correlate them with performance changes. This information helps optimize maintenance schedules and identify effective procedures.
When to Call for Professional Help
While many GC troubleshooting tasks can be handled in-house, some problems require professional service technicians. Knowing when to seek help prevents equipment damage and reduces downtime.

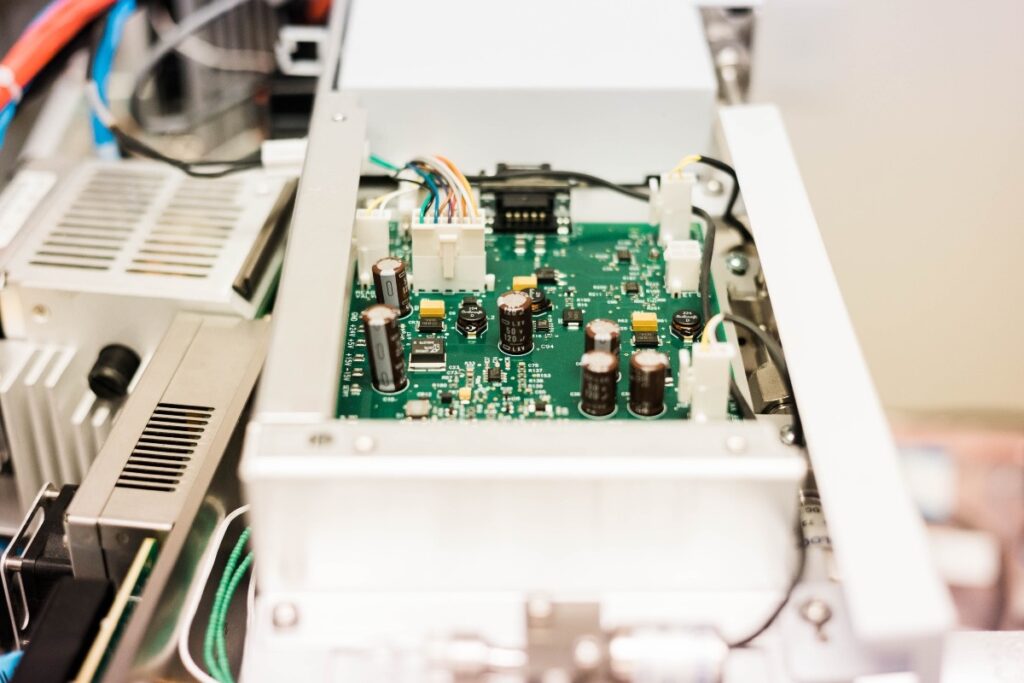

Complex electronic problems often need professional diagnosis. If troubleshooting steps don’t resolve the issues or multiple symptoms appear simultaneously, professional service may be more cost-effective than continued in–house efforts.
Safety considerations sometimes require professional service. High-voltage systems, vacuum systems, and gas handling equipment can be dangerous if not properly serviced.
Warranty considerations may require authorized service for covered repairs. Check warranty terms before attempting major repairs that might void coverage.
Gas Chromatography Performance Optimization
| Parameter | Normal Range | Troubleshooting Action | Expected Outcome |
|---|---|---|---|
| Baseline Noise | <0.1% full scale | Check gas purity, clean the detector | Reduced noise level |
| Peak Asymmetry | 0.8-1.5 | Replace liner, condition column | Improved peak shape |
| Retention Time RSD | <0.1% | Verify flow rate, temperature | Better precision |
| Peak Area RSD | <2% | Service injection system | Improved accuracy |
| Resolution | >1.5 | Optimize temperature program | Better separation |
| Sensitivity | Method dependent | Clean detector, check gas flows | Enhanced detection |
Conclusion
Effective gas chromatography troubleshooting requires understanding your system’s components and following systematic diagnostic procedures. Most common GC problems and solutions involve routine maintenance issues that can be prevented with proper care and regular service.
By implementing the troubleshooting strategies outlined in this guide, you’ll minimize downtime and maintain reliable analytical results.
Remember that preventive maintenance is always more cost-effective than reactive repairs, and keeping detailed performance records helps identify issues before they become serious problems.
